Description

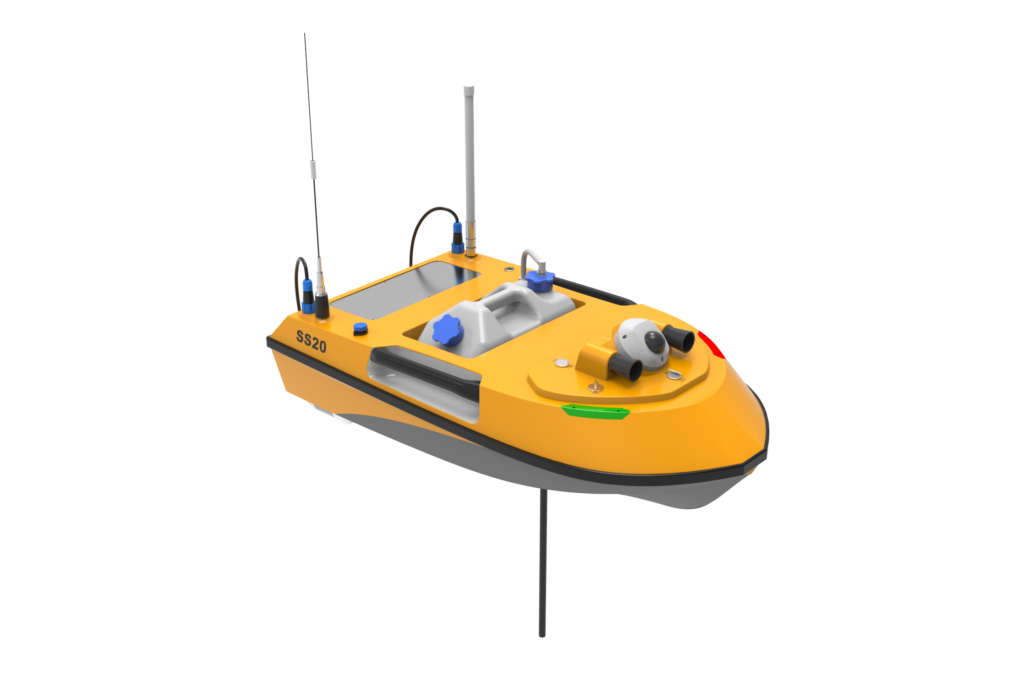

Remote Control Water Sampling Boat
SS20 USV is dedicated to one-man operated & single point water sampling solutions for rivers, lakes and reservoirs.
Dedicated to one-spot water sampling
The USV can collect 10L water samples from one spot 0.5m under the water’s surface.
High speed and tangle free
The innovative propeller system allows the USV to sail at a speed up to 5m/s and to avoid being entangled with water plants and rubbish.
Flexible operation with remote controller
The USV is operated by remote controller so that the operator can enjoy higher levels of flexibility and safety in harsh working environments.
Compact and portable
This USV only weighs 15kg and is 105cm long, so it can be carried by one person and transported in the trunk of a car.
Specification
| Hull Material | Carbon fiber |
| Dimension | (L)105 cm *(W)55 cm *(H)35cm |
| Weight | 17 kg |
| Payload | 10 kg |
| Draft | 15 cm |
| Propulsion | Duct type thruster |
| Remote Control Frequency | Radio frequency, 900 MHz/ 2.4GHz |
| Communication Range | RC: 1 km Auto: 2 km |
| Survey Speed | 3 knots (1.5m/s) |
| Max. Speed | 8 knots (4 m/s) |
| Battery Life | 6hrs @ 1.5m/s |
| Battery Pack | 1 x 33V 40Ah Quick Battery Replacement |
| Options | ADCP telemetry module |
